DC SSR Relay DC SSR Of Single In-Line
Description Of DC SSR Relay
Application Range
SSRs are not only used in industrial machinery, such as machining
centers and industrial robots, but are also widely used in the
following fields which support electric appliances and our daily
lives.
Examples:
- Office equipment, such as copy machines, phototypesetting
machines, facsimile, telephone switchboards, and computer terminals
- Equipment, such as NC machine tools, elevators, industrial
robots, electric lighting, sequencers (PLCs), and temperature
controllers
- Electric appliances, such as microwave ovens, power tools, sewing
machines, air conditioners, washing machines, and refrigerators
- Lighting equipment, such as signals, lighting display boards and
dimmers
- Vending machines, automatic vending machines, automatic ticket
gates, ticket machines, money changers
- Amusement equipment, such as UFO catchers and racing games -
Semiconductor manufacturing equipment, such as steppers, bonding
machines, and diffusion furnaces
- Other various electrical equipment
Specification Of DC SSR Relay
solid state relay PDF: https://maiimg.com/free/?e=dyPPp/s2DmrS66
rectifer.pdf
power controller.pdf
DC SSR of Single In-line
Main technical parameter Type | SDI1102D | SDI1103D SDI1105D | SDI3003D SDI3005D |
| Load voltage | 12-110VDC | 12-110VDC,12-300VDC |
| Max Load current | 2A | 3A,5A |
| Isolation bet. In & out | ≥2000VAC 1 min |
| Isolation to case | ≥2500VAC 1min |
| Control voltage | 3-15Vor 15-28V |
| Control current | 3-30mA |
| Turn-on voltage drop | ≤1.3V |
| Off-state leakage | < 0.05mA |
| Switch time | ≤0.1ms |
| Status indicator | NO | LED |
| Operating temperature | -40~80℃ |
Dimensions Of DC SSR Relay

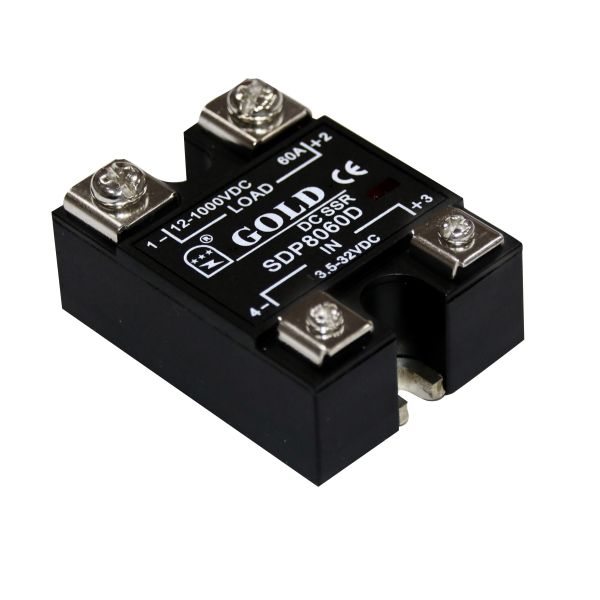

DC SSR of Horizontal,DC SSR of Module
Main technical parameter Type | SDP1105D SDP1110D SDP1120D SDP4010 SDP4020 SDP4030 SDP4040 SDP6060
SDP6020 SDP6030 SDP6040 SDP6060 | SDM Series |
| Load voltage range | 12-110VDC,12-480VDC,12-600VDC | 48-400VDC,48-1000VDC |
| Max Load current | 5A,10A, 20A,30A,40A,60A | 100A,150A,200A,300A,400A,600A |
| Isolation bet.In & out | ≥2500VAC 1 min |
| Isolation to case | ≥2500VAC 1 min |
| Control voltage range | 3-15V,15-32V |
| Control current | 5-30mA |
| Turn- on voltage | ≤1.5V |
| Off-state leakage | <1mA |
| Status indicator | LED |
| Operating temperature | -40~80℃ |
| On of off time | ≤2ms |
Dimensions Of DC SSR Relay
