Specification of Diode Thyristor Rectifier
 | IF(AV)=35A ~ 300A, VRRM= 800V,1600V or custom made, Tjm= 150℃ The parameters in the table are the ratings and characteristics of
each diode chip in module Suitable for types: MDG,MDY Three Phase Half Bridge Rectifier Modules(non isolated type) | TYPE | IF(AV) TC | VTM (V) | IRRM (mA) | Rth(j-c) (℃/W) | Rth(c-h) (℃/W) | Fig | Circuit | | (A) | (℃) | | MDG35 | 35 | 100 | ≤1.3 | ≤10 | 0.65 | 0.1 | 8 |  | | MDG55 | 55 | 90 | ≤1.3 | ≤10 | 0.47 | 0.1 | 8 | | MDG70 | 70 | 90 | ≤1.3 | ≤10 | 0.38 | 0.1 | 8 | | MDG90 | 90 | 85 | ≤1.3 | ≤10 | 0.29 | 0.1 | 8,16 | | MDG110 | 110 | 85 | ≤1.3 | ≤10 | 0.23 | 0.1 | 8,16 | | MDG130 | 130 | 85 | ≤1.3 | ≤15 | 0.19 | 0.05 | 8,16 | | MDG150 | 150 | 85 | ≤1.3 | ≤15 | 0.16 | 0.05 | 8,16 | | MDG200 | 200 | 85 | ≤1.5 | ≤15 | 0.126 | 0.05 | 8,16 | | MDG250 | 250 | 85 | ≤1.5 | ≤20 | 0.100 | 0.05 | See web site | | MDG300 | 300 | 80 | ≤1.5 | ≤20 | 0.083 | 0.05 | See web site |
IT(AN)=25A~300A, VDRM=VRRM=600V, 1600V or custom made, Tjm= 125C, dv/dt≥500V/μs The parameters in the table are the ratings and characteristics of
each thyristor chip in module Suitable for types: MTG,MTY Three Phase Half Bridge Thyristor Modules(non-isolated type) | TYPE | IT(AV) TC | VGT IGT | VTM (V) | IRRM (mA) | Rth(j-c) (℃/W) | Rth(c-h) (℃/W) | Fig | Circuit | | (A) | (℃) | (V) | (MA) | | MTG25 | 25 | 85 | ≤2.0 | 60±10 | ≤1.3 | ≤10 | 1.15 | 0.1 | 8 |  | | MTG40 | 40 | 85 | ≤2.0 | 60±10 | ≤1.3 | ≤10 | 0.65 | 0.1 | 8 | | MTG55 | 55 | 85 | ≤2.0 | 60±10 | ≤1.3 | ≤10 | 0.47 | 0.1 | 8 | | MTG70 | 70 | 85 | ≤2.5 | 60±10 | ≤1.3 | ≤15 | 0.38 | 0.1 | 8 | | MTG90 | 90 | 85 | ≤2.5 | 65±15 | ≤1.3 | ≤15 | 0.29 | 0.1 | 8,16 | | MTG110 | 110 | 85 | ≤2.5 | 65±15 | ≤1.3 | ≤15 | 0.23 | 0.1 | 8,16 | | MTG130 | 130 | 85 | ≤2.5 | 65±15 | ≤1.3 | ≤20 | 0.19 | 0.05 | 8,16 | | MTG150 | 150 | 80 | ≤2.5 | 70±15 | ≤1.5 | ≤20 | 0.16 | 0.05 | 8,16 | | MTG200 | 200 | 80 | ≤2.5 | 70±15 | ≤1.5 | ≤20 | 0.126 | 0.05 | 8,16 | | MTG250 | 250 | 80 | ≤2.5 | 75±15 | ≤1.5 | ≤30 | 0.100 | 0.05 | See web site | | MTG300 | 300 | 75 | ≤3.0 | 75±15 | ≤1.6 | ≤30 | 0.083 | 0.05 | See web site |
|
 | ID=30A ~ 500A, Ijm= 125℃, VDRM=VRRM= 1600V or custom made, VISO≥ 2.5KV(RMS) dv/dt≥500V/μs The parameters in the table are the ratings and characteristics of

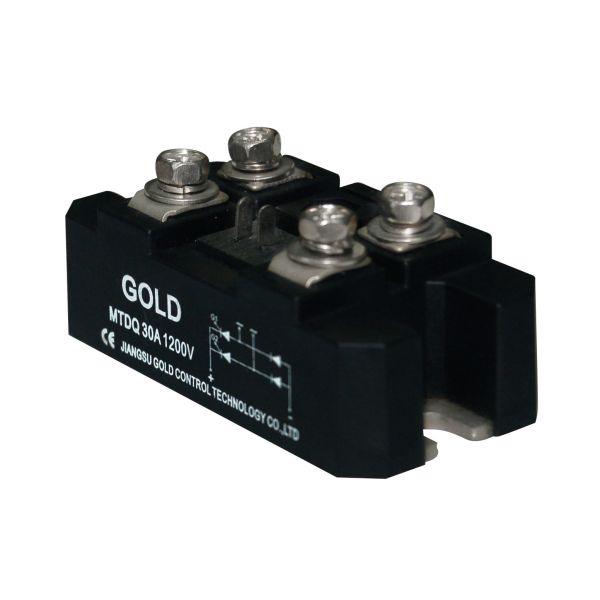

each thyristor chip in module(Except for In) Suitable for types: MTQ,MTF,MHF,MD/TF,MT/DQ,MT/DF Single Phase Full-controlled (half controlled) Rectifier Bridges
Modules | TYPE | IT(AV) TC | VGT IGT | IDRM IRRM (mA) | VTM (V) | Rth(j-c) (℃/W) | Rth(c-h) (℃/W) | Fig | Circuit | | (A) | (℃) | (V) | (MA) | | MTQ30 | 30 | 85 | 0.8±0.1V | 40±10 | ≤8 | ≤1.6 | 1.4 | 0.1 | 4,5 |  | | MTQ60 | 60 | 85 | 0.8±0.1V | 40±10 | ≤10 | ≤1.6 | 0.76 | 0.1 | 4,5 | | MTQ100 | 100 | 85 | 0.8±0.1V | 45±10 | ≤15 | ≤1.6 | 0.49 | 0.1 | 4,5 | | MTQ150 | 150 | 80 | 0.8±0.1V | 45±10 | ≤15 | ≤1.6 | 0.3 | 0.05 | 6 | | MTQ200 | 200 | 80 | 0.95±0.15V | 45±15 | ≤20 | ≤1.6 | 0.25 | 0.05 | 6 | | MTQ250 | 250 | 80 | 0.95±0.15V | 50±15 | ≤20 | ≤1.8 | 0.29 | 0.05 | 6 | | MTQ300 | 300 | 80 | 0.95±0.15V | 55±15 | ≤20 | ≤1.8 | 0.24 | 0.05 | 6 |
ID=30A ~ 800A, Ijm=125℃, VDRM=VRRM= 1600V or custom made, VISO≥2.5KV(RMS) dv/dt≥500V/μs The parameters in the table are the ratings and characteristics of
each thyristor chip in module(Except for ID) Suitable for types: MTS,MT/DS,MHS Three Phase Full- controlled (half controlled) Rectifer Bridges Modules | TYPE | IT(AV) TC | VGT IGT | VTM (V) | IDRM IRRM (mA) | Rth(j-c) (℃/W) | Rth(c-h) (℃/W) | Fig | Circuit | | (A) | (℃) | (V) | (MA) | | MTS30 | 35 | 85 | ≤20 | 40±10 | ≤1.6 | ≤10 | 1.30 | 0.1 | 4,5 |  | | MTS60 | 60 | 85 | ≤2.0 | 40±10 | ≤1.6 | ≤10 | 1.10 | 0.1 | 4,5 | | MTS100 | 100 | 85 | ≤2.0 | 45±10 | ≤1.6 | ≤10 | 0.75 | 0.05 | 4,5 |
|
TYPE:MTQ60A VRRM:1 600V Max Load Current:60A Dimensions:80×40×27mm Fixing size:66mm, Φ6.5mm |
 |
 |  |  |
TYPE: DFA60AA16 VRRM: 1 600V Max Load Current: 60A Dimensions: 93×50×21mm Fixing size: 80mm, Φ5.3mm | TYPE: PWB100AA16 VRRM: 1 600V Max Load Current: 1 00A Dimensions: 92×26×29mm Fixing size: 80mm, Φ6.4mm | TYPE: DFA100AA16 VRRM: 1 600V Max Load Current: 1 00A Dimensions: 108×62×28mm Fixing size: 93×48mm, Φ6mm |
